Tubus skylights SUNPIPE

Do you complain about not suficient light in your room, office or corridor? Then right for you are used tubus skylights Sunpipe.  If You have the room situated in the middle of building and there is no possibility of installing the classical window, then the only suitable solution of Your problem is to use top reflection skylight. For this kind of skylight means garret expanse or the room in upper floor no problem - simply said, by a special pipeline You will be able to carry the rays of light from roof of the house into Your room.
Moreover You transilluminate the room with healthy and natural sunlight and herewith You will relieve Your eyes, what will show in lesser tiredness and possibly a better productivity.

Tubus skylights Sunpipe are new revolution systems of roof lightning. Its funkcion replace original system of lightning  by former system of lightning by light shaft which went throught the building and considerably intervene into the building construction.

Thanks to this new developed system we are able to bring the sun beams into the every corner of your house or office.

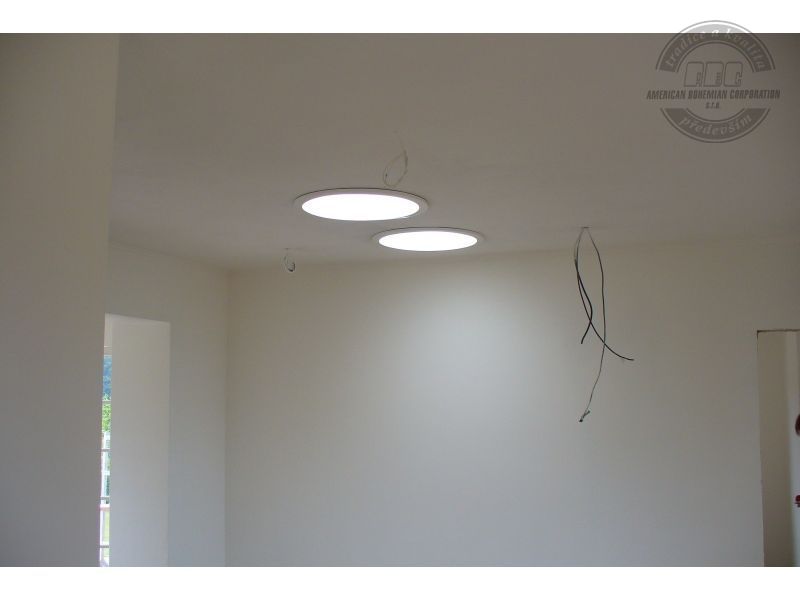

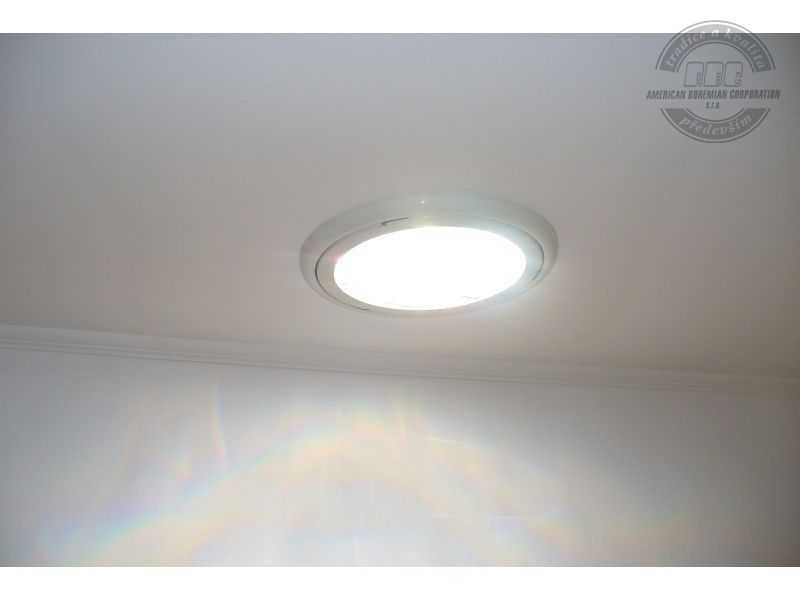

Also in the case when is big space between the roof and ceiling and the use of roof Windows would not be technicaly possible, you can use tubus skylights Sunpipe. Basic lightning set of tubus skylight is created by special dome on the roof of the building, further by system of pipe with inner reflective surface, where the one part at the option for pitched roof is adjustable up to 30°. The light is directed into the room by difusor, which thanks to its construction difuses the light into the whole part of lightened space.

If you need to use the tubus skylight Sunpipe also during deficiency of sun beams (in dusk or at night), there is a possibility to install in bellow part of system an universal lightning source. Then by mere switch of choose the skylight into the common interior light.

Tubus skylights Sunpipe® – basic information

Tubus skylights Sunpipe are supllied in two basic sets:

  1. set for pitched roof – the length of set 1,5m, include 1pcs of joint and 2 pcs of part 61 cm
  2. set for flat roof . The length of the set 0,6m include only the part 61 cm. It doesn’t include the joint

To any set is possible to use extending  part for pipe in the length 61 cm.

Joints for  tubus skylight Sunpipe are produced in two modifications, as a two-segment with the inclination up to 30° and free-segment with the inclination up to 45°. In the basic set for piched roof is supllied a joint 30°, which in the most of cases is sufficient for instalation into the pitched roofs.

Extension parts and joints, which are not part of basic set are buy in adittion as accessories.

Skylight Sunpipe – size and maximal lightning output

Type Standart diameters Bright summer sky Cloudy summer sky Bright winter sky Illuminated area
SP230 230 mm 420 Lux 200 Lux 75 Lux 7,5 m2
SP300 300 mm 740 Lux 420 Lux 210 Lux 14 m2
SP450 450 mm 1440 Lux 740 Lux 320 Lux 22 m2
SP530 530 mm 1880 Lux 930 Lux 415 Lux 40 m2

Other diameters on request
SP750 750 mm 3550 Lux 1800 Lux 900 Lux 50 m2
SP1000 1000 mm 6300 Lux 3400 Lux 1350 Lux 70 m2
  100 w bulb 170 Lux 170 Lux 170 Lux

Losses in the system of tubus skylights Sunpipe®

The losses in the system are directly proportional to the length of the piplines and the number of joints used in the tubus skylights.

Losses by reflection are only 2%, therefore the efficiency of the system is incredible 98%!!!

Common losses on the length is approximately 6%/m. Losses in the joint adjusted on the 30° is 12%/m.


Regarding the delivery terms and shipment please contact us on the e-mail export@abcweb.cz.

The goods is possible to order directly on this sites throught contact form or by email on the adress export@abcweb.cz, by phone + 420 219 850 or by fax 420 545 234 443.

The warranty for all Sunpipe systems is 10 years.

We offer further training in design, planning and realization of tubus skylights.
